xresconv-cli 2.x
The CLI drives xresloader in batches from XML manifests, suitable for build machines and automation. Version 2.0 replaces the main program with native Rust while retaining xresconv-conf XML. See Quick start and XML and output matrices.
Commands and options
xresconv-cli [CLI options]... <conversion-list.xml> [-- [additional xresloader options]...]
| Option | Behavior |
|---|---|
-h, --help | Help; no XML required |
-v, --version | Version; no XML required |
-t, --test | Preview the plan without starting Java or creating outputs |
-s, --scheme-name <name> | Filter item scheme attributes; repeatable, retain any match |
-p, --parallelism <number> | Positive concurrency limit; defaults to 1 or 2 based on CPU count |
-j, --java-option <option> | Append a JVM option; repeatable, leading - added automatically |
-J, --java-path <path> | Java executable path or command; precedes JAVA_HOME and PATH |
-a, --data-version <version> | Override XML data version |
xresconv-cli --test -p 1 convert.xml
xresconv-cli -s scheme_upgrade -a release-demo -j Xmx512m convert.xml -- --pretty 2
CLI -p sets concurrency; engine -p selects the protocol. Put backend options after --. -j Xmx512m belongs to the CLI; XML uses <java_option>-Xmx512m</java_option>.
--test checks XML, the working directory and JAR existence, but not workbook, descriptor or JAR contents. A preview reporting 0 job(s) failed means planning succeeded. After execution, check exit status and files. GUI groups, categories and scripts are not executed by the CLI.

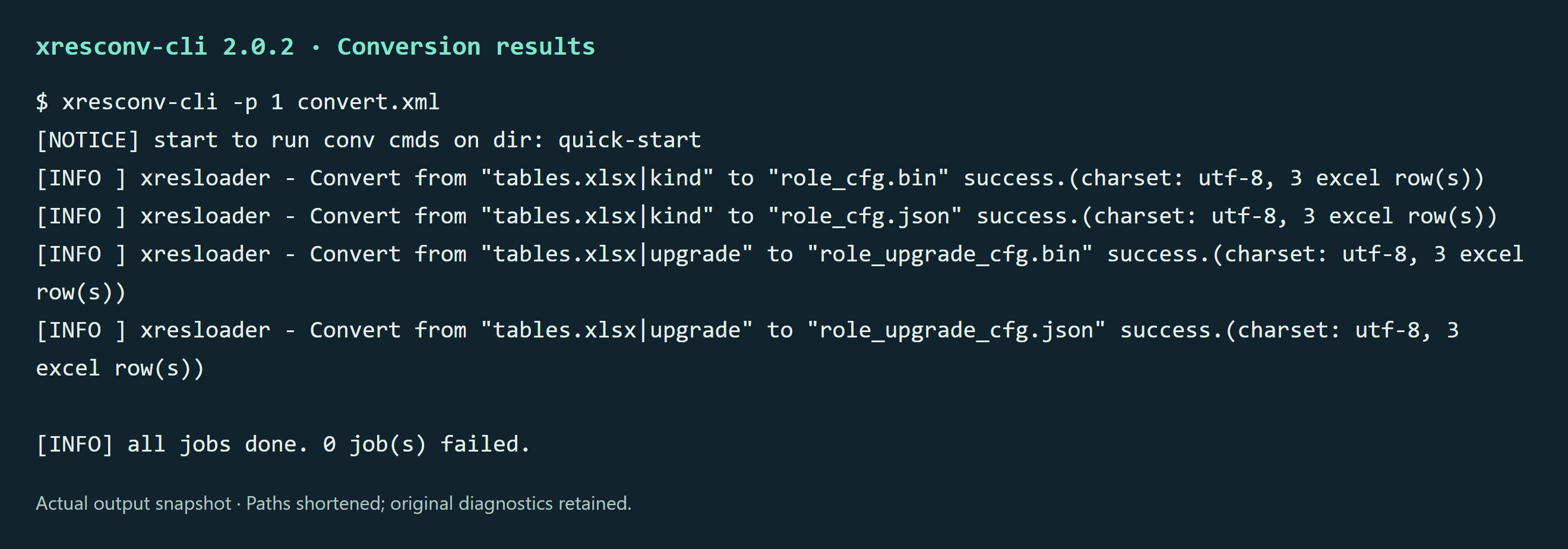

Click the image to view it at full size. Diagnostics retain the tool's original language.
These CLI and engine versions have English diagnostics and no language-switch option. The snapshot preserves actual messages and shortens only the working path.
Paths and includes
The main XML directory plus work_dir determines the working directory. Relative JAR, schema, input and output paths use that directory. include is relative to the XML declaring it. In the CLI, an included file's work_dir still uses the main XML directory; the GUI uses the declaring file's directory. For shared configurations, define work_dir consistently in the main file.
Included files load first, then the current file merges into them. See Shared configuration for scalar, appended and grouped values. Cyclic includes or more than 128 levels produce an error.
Automation and failure handling
Concurrency limits Java batches, rather than creating one Java process per XML item. Empty plans do not start Java. Spawn, write, conversion and cleanup failures produce nonzero status; ordinary failure counts saturate at 255. Configuration reads return -2, missing JARs return -4 (254 and 252 on Unix). Cancellation returns 130.
Java lookup uses -J, then JAVA_HOME, then PATH. An invalid explicit -J fails. Relative Java paths resolve before changing the working directory. Ctrl+C stops dispatch and reclaims this invocation's process tree. The CLI has no separate automatic conversion timeout option.
stdin uses xresloader tokenization: single/double quote grouping without shell backslash escaping. The CLI preserves argv boundaries after --. A single argument containing a newline, NUL, or both quote types with whitespace that cannot be represented is rejected. XML option is a backend command fragment; configuration authors provide its internal quoting.
CPRINTF_MODE controls colors (term, none, win32_console); TERM=dumb disables them. stdout and stderr are read separately, retaining Unicode.
Migrating from Python 1.x
Replace python xresconv_cli.py convert.xml with xresconv-cli convert.xml. Existing XML does not need rewriting for Rust. Version 2 adds per-output_type output_dir and counts Java startup failures in exit status.
The old xresconv_cli.py, __main__.py and xresconv-cli.py forwarders prefer XRESCONV_CLI_BIN, then a cached binary, then download the latest stable release and verify SHA256. Cached versions are not upgraded on every call. Offline or pinned builds can select a verified executable:
$env:XRESCONV_CLI_BIN = 'C:\tools\xresconv-cli.exe'
python xresconv_cli.py convert.xml
Forwarders still require Python; the native CLI does not. Python 2.7 support is not a description of the current main program. See the upstream migration contract for behavior and test mappings.
